Agilent HP 66000 Series - 150W Modules Specs (311.3 KB)
| Number of Outputs | Modular |
| Max. Voltage | 200.0 V |
| Max. Current | 20.00 A |
| Ripple and Noise | 2.0 mVrms |
| Computer Interface | GPIB |
| Status | - |
| See also | 11166000 Series - 150W Mainframe |
The 66000 Series includes the following modular outputs:
66101A - 66106A
66101A-J03
66101A-J05
66103A-J12
66103A-J09
66103A-J01
66103A-J02
66104A-J09
66105A-J01

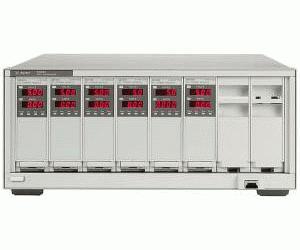

Meet changing requirements in ATE and production test with up to eight easily swappable modules per mainframe. The modular design conserves rack space and simplifies system cabling and assembly.
Modular system permits up to 8 outputs of 150 W per output in 4 U of rack space
Simplify reconfiguration, calibration, or repair with modules that remove from the front without disconnecting DUT wiring
GPIB interface with SCPI command set, drivers available
Serial link system enables control of multiple power supplies from one GPIB address
Simplify system cabling when isolation or reverse voltage is needed using optional built-in open/close/polarity reversal relays
Advanced hardware and software triggering system to allow synchronization to other events in your ATE system
Simplify cabling with built-in measurements
Streamline tasks with optional keyboard for manual control and advanced programmable features including automated sequencing of up to 20 output setting steps
Ensure DUT safety with protection features
