OPHIR 4010RE
上传作者:2020-05-28 10-39-24 更新时间:handler

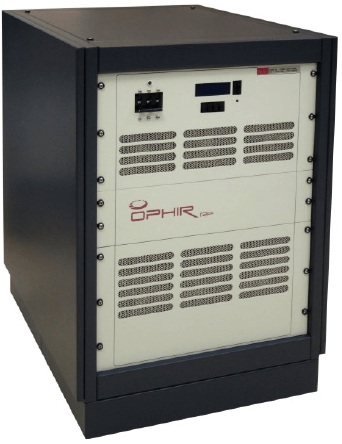

OPHIR 4010RE 300 Watt Linear Power RF Amplifier OPHIR 4010RE
The Ophir 4010RE is a 300 Watt band-specific amplifier that covers the 800 ??? 1000 MHz frequency range. This small and lightweight amplifier utilizes Class A/AB linear power devices that provide an excellent 3rd order intercept point, high gain, and a wide dynamic range. This amplifier achieves high efficiency operation with proven reliability. Specifications. Frequency Range: 800 ??? 1000 MHz. Saturated Output Power: 300 Watts typical. Power Output @ 1dB Comp.: 150 Watts min. Small Signal Gain: +56 dB min. Small Signal Gain Flatness: + 1.5 dB max. IP3: +58 dBm typical. Input VSWR: 2:1 max. Harmonics: -20 dBc typical @ 150 Watts. Spurious Signals: > -60 dBc @ 150 Watts. Input/Output Impedance: 50 Ohms nominal. RF Input: 0 dBm max. RF Input Signal Format: CW/AM/FM/PM/Pulse. Class of Operation: AB. Rear Panel Connectors with Control Option.
