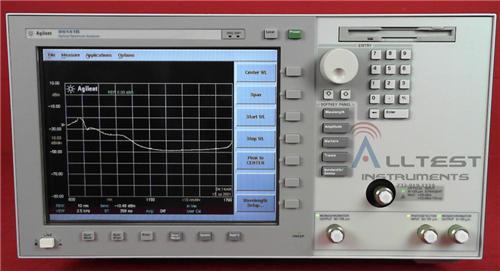

Agilent / HP 86141B Benchtop Flexible Optical Spectrum Analyzer

This Agilent 86141B Benchtop Flexible Optical Spectrum Analyzer is used, and in excellent condition. It functions as a standard OSA when one of the two Monochrometer Output connectors are connected to the Photodetector Input via a PC-PC fiberoptic jumper cable.

Features:

• Optical Interface: PC

• Optical Input: 9/125 µm

• Photodetector Input: 50/125 µm

• (2) Monochromator Outputs: 9/125 µm and 50/125 µm

• Opt 004: 1300/1550 Internal EELED Source

• Opt 006: Wavelength Calibrator - The wavelength calibrator option provides an onboard wavelength reference that can be used to automatically calibrate the optical spectrum analyzer. The calibrator is based on an EELED and an Acetylene gas absorption cell. The wavelength calibrator enhances the OSA to achieve better than ±10 pm wavelength accuracy and removes the need to use a tunable laser source and multi-wavelength meter as an external reference.

• Opt H17: Modification to provide preselector capability for single mode (9/125 um) applications. The internal transfer switch has been removed. This special option requires a jumper to be installed on the front panel from monochromator output to photodetector input for OSA operation.

• Internal applications: Passive Components, WDM Spectrum, Amplifier Test, Source Tests, Filter Mode, and Power Meter Mode
