Description:

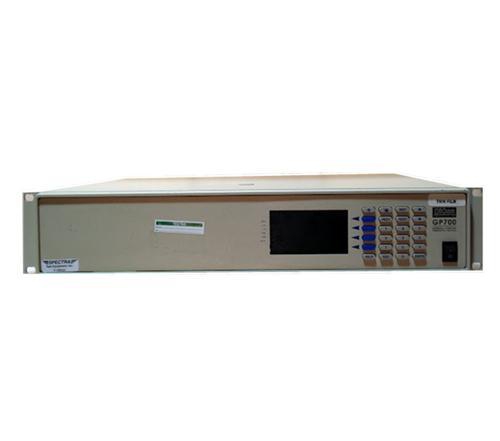

DiCon's GP700 switch modules offer complete fiber optic switching solutions. The modules are high-precision, low-loss optical switches used for cable and component testing, remote fault locating, and optical signal routing. The GP700 provides accurate positioning for either single mode or muti mode fibers resulting in low insertion loss and excellent repeatability. The GP700 can control up to 30 axN switches and up to 64 2x2, 1x2, or On-Off switches. Larger configurations can be accommodated using multiple housings.

Specific Details:

Insertion lost: 0.6dB typ., 1.2dB maz

Back-reflection - Single Mode: -55 dB max

Multi Mode: -20 dB typ.

PDL: 0.05 dB max

Cross-talk: -80 dB max

Durability: 10 million cycles min.

Switching time: 425ms+16ms per channel max
