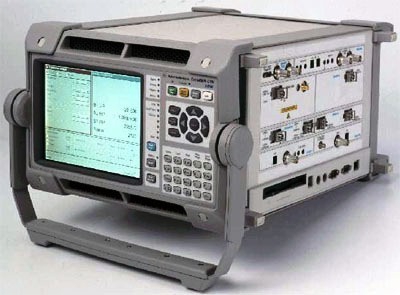

AGILENT J7230A OmniBER OTN Communications Performance Analyzer AGILENT J7230A

The Agilent J7230A OmniBER OTN 10 Gb/s analyzer offers BER and overhead testing at all SONET/SDH rates from 52 Mb/s to 10 Gb/s, plus the G.709 optical channel rates of OTU1 (2.66 Gb/s) and OTU2 (10.71 Gb/s). This combination enables the comprehensive testing of next generation optical channel devices and equipment. The independent verification of such devices and equipment against the new standards, provides greater confidence of interoperability with other vendors equipment, and speeds time to market. The units main features are as follows: comprehensive (ITU-T G.709) OTU1 and OTU2 optical channel support including Forward Error Correction (FEC) simulation and analysis, and OTU frame capture; comprehensive contiguous concatenation support including standard STS-3c/AU-4, STS-12c/AU-4-4c, STS-48c/AU-4-16c and arbitrary STS-6c/AU-4-2c, STS-9c/AU-4-3c and STS-24c/AU-4-8c; network realistic mixed mapping support; simultaneous BER and alarm monitoring of all STS/AU channels ("Signal Wizard"); APS service disruption measurements; set-up and monitoring of all SONET/SDH/optical channel overhead bytes; and unframed PRBS capability at all rates. Options. Opt 012 - DSn/PDH framed/unframed testing plus DSn/PDH / VCAT and Ethernet over SONET/SDHelectrical interfaces. Opt 100 - 52-2488 Mb/s test interfaces not required. Opt 104 - 1310 nm optical transmitter. Opt 105 - 1550 nm optical transmitter. Opt 106 - 1310/1550 nm optical. Opt 108 - Optical Interfaces operating at 10 and 10.7 Gb/s, 1550 nm optical transmitter. Opt 111 - Adds OTU-1 at 2.66Gb/s. Opt 112 - PDH/DSn Testing/Electrical Interfaces, OTU2 testing at 10.71Gb/s. Opt 325 - Adds virtual concatenation, Ethernet over SONET/SDH and
